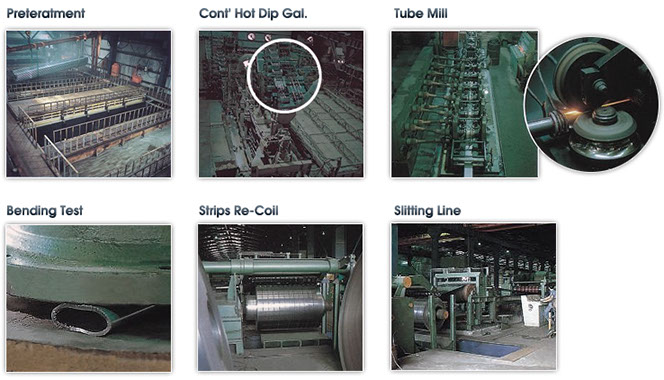

Main Facilities Applications
Slitter Line ( 2 Line ) >> Carbon steel pipes for ordinary piping
ERW Piper & Tube Mill ( 4 Mill ) >> Galvanized steel pipes for water service
Continuous Hot Dip Galvanizing Plant ( 1Line ) >> Galvanized steel pipes for gas service
Other Facilities >> Steel pipes for pressure service
Size Availablity >> Steel pipes for general structure purpose
Outside Diameter: 21.3 ~ 216mm // 1 / 2" ~ 8" >> Square & Reactangular tubes
Wall Thickness: 0.7 ~ 12mm >> All other shape steel tubes, Galvanized pipes for scaffolding, fencing, agricultural purposes
>> Rigid steel conduit

Rectangular Tube



>> Cold / Hot rolled



Dimensions:13*26, 12.7*31.8, 12.7*38.1, 20*40, 16.8*42.3 , 20*50, 25.4*50.8, 23.5*53.5



Thickness: 0.7 - 3.0 mm







>> Galvanized



Application: For service in water, steam, gas, coolant, fire extinguisher, or other liquid and air.







Properties: Resistant to pressure and harmless when use as popeline for drinking water.

Cone Type Tube



>> Cold / Hot rolled



Dimensions: 50 * 50 mm











Thickness: 1.2 - 3.0 mm









Any other deformed shapes of hollow welded pipes or profiles are also acceptable by request.

Square Tube



>> Cold / Hot rolled



Dimensions:18, 20, 21.3, 25.4 ,30, 33.4,38, 45, 50 & 60 mm







Thickness: 0.7 - 3.5 mm







>> Galvanized



Application: For gerneral structure purpose, auto warehouse, strechable garage, exterior framework, garden and farms house.



Properties: Economical, durability, weatherbility, easy assembly and application.



Round Tube



>> Cold / Hot rolled



Dimensions: Cold rolled ∮<= 76.2mm ,Hot rolled ∮15.9 - 89 mm







Thickness: Cold rolled 0.6 - 2.3 mm ,Hot rolled 1.5 - 4.5 mm

Oval Tube



>> Cold / Hot rolled



Dimensions:16.5*34, 20*40, 17*57mm











Thickness: 1.2 - 3.0 mm











Applications: Furniture, display rack, leisure and sport goods, baby cart, bicycles and auto-parts...etc.
